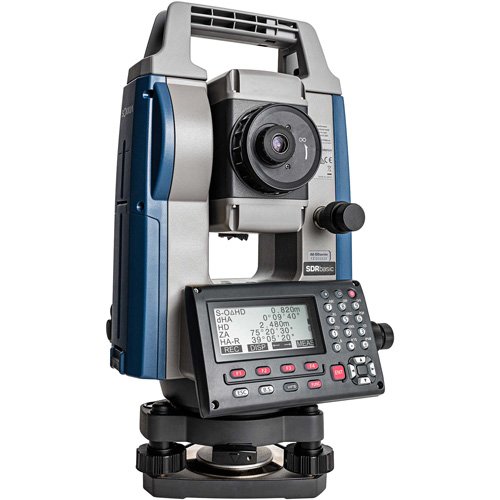

Key Features of Sokkia iM 52 Reflectorless Total Station
- Perfect for entry-level site layout and surveying, the Sokkia iM52 Reflectorless Total Station is a smart measuring device that offers reliable and accurate results with a friendly price. The Sokkia iM 50 Series Total Station features a reflectorless range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.
- This Sokkia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.
- With an IP66 rating, the Sokkia Total Station iM-52 is total dust-proof and water resistant. It features dual graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.
Sokkia Total Station iM52 Technical Specifications:
Sokkia iM 52 Total Station (Telescope)
| Magnification / Resolving Power |
30x / 2.5′ |
| Length |
171mm |
| Objective aperture |
45mm (48mm for EDM) |
| Image |
Erect |
| Field of View |
1°30′ (26m / 1,000m) |
| Minimum focus |
1.3m |
| Reticle illumination |
5 brightness levels |
Angle Measurement
| Display Resolution |
1’/5′ (0.0002 / 0.001gon, 0.005 / 0.02mil) |
| Accuracy (ISO 17123-3:2001) |
2′ |
| Dual Axis Compensator |
Working range ±6′ (±111 mgon) |
| Collimation Compensation |
On/Off (selectable) |
Distance Measurement
| Laser output (Reflectorless mode) |
Class 3R / Prism / sheet mode: class 1 |
| Range reflectorless mode |
0.3 to 500m (1,640ft.) |
| Range prism mode |
1.3 to 4,000m (4.3 to 13,120ft.) |
Measuring Time
| Fine Measurement Mode |
0.9 sec.(Intial 1.5 sec.) |
| Rapid Measurement Mode |
0.6 sec.(Intial 1.3 sec.) |
| Tracking Measurement Mode |
0.4 sec.(Intial 1.3 sec.) |
Interface and Data Management
| Display / Keyboard |
Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / alphanumeric keyboard / 28 keys with backlight |
| Control panel location |
Both side |
| Data storage (Internal memory) |
Approx. 50,000 points |
| Data storage (Plug-in memory device) |
USB flash memory (max. 32GB) |
| Interface |
Serial RS-232C, USB2.0 (Type A for USB flash memory) |
| Bluetooth modem (optional)* |
Bluetooth Class 1.5, Operating range: up to 10m |
General
| Laser pointer |
Coaxial red laser using EDM beam |
| Levels Graphic |
6′ (Inner Circle) |
| Circular Level |
10’/2mm |
| Optical |
Magnification: 3x
Minimum focus: 0.5m from tribrach bottom |
| Dust and water protection |
IP66 (IEC 60529:2001) |
| Operating temperature |
-20°C to 60°C |
| Size with handle (w x d x h mm) |
183 x 181 x 348mm |
| Weight with batter and tribrach |
Approx. 5.1kg |
Power Supply
| Battery (BDC46C) Detachable battery |
Li-ion rechargeable battery |
| Operating time (20°C) BDC46C |
Approx. 14 hours (In use of ECO mode. Fine single measurement every 30sec) |
Sokkia iM 52 Total Station Scope of delivery
- Sokkia iM-52 Total Station
- 1 No. Battery (BDC46C)
- 1 No. Battery Charger (CDC68A)
- Battery Adapter
- Power Cable
- Lens Cap
- Lens Hood
- Tool Pouch
- Screwdriver
- Lens Brush
- Adjusting Pin 2x
- Cleaning Cloth
- Operation Manual (CD-R)
- Carrying case
- Carrying Strap
- Heavy Duty Wooden Tripod
- Prism with Holder & Target Plate
- Telescopic Prism Pole
