Description
Visible red laser
- A flashing red light in the laser-emission window makes laser projection clearly noticeable even at a distance.
Compact, lightweight yet rugged
- The lightweight 2 kg (4.4 lb.) body conforms to the IP56 specification for superior dust- and water-resistance to withstand demanding construction environments.
H.I.Alert for extra reliability
- The laser beam will shut off as soon as the instrument is tilted or jarred to prevent false readings.
Comes complete with:
- SOKKIA LR200 Dual Face Multi Colour Detector & Bracket
- Dry Cell Batteries and Holder
- Hard Carry Case
- Manual
- Optional rechargeable Battery & Charger

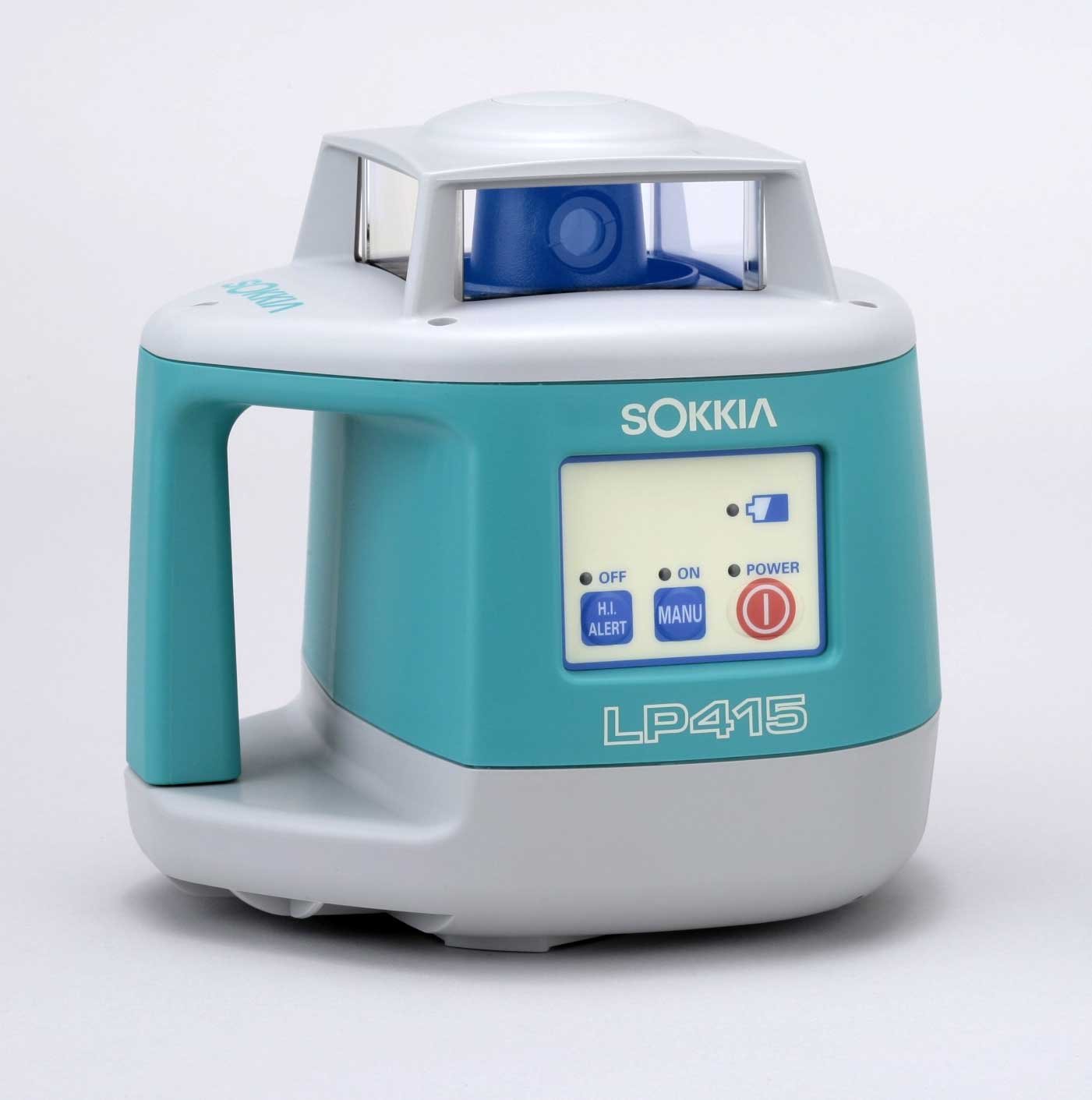

Sokkia Rotating Laser LP-415 Technical Specifications:
Easy-to-handle Detector Provides Outstanding Functionality and Versatility.
LP415 Specifications
| Horizontal accuracy | 15 arc seconds (2.2mm/30m, 7.3mm/100m) (0.09 in./100 ft., 0.29 in./300 ft.) |
| Self-leveling range | ±3° |
| Typical measuring range* | Diameter: 300m (1,000 ft.) Radius: 150m (500 ft.) |
| Beam diameter | 7mm dia. (0.28 in.) (at projection point) |
| Rotation speed | 600rpm |
| Light source | Laser diode, 650nm wavelength (visible) |
| Beam output | 0.8mW or less |
| Laser class | Class 2 (IEC/CDRH) |
| H.1.Alert | Provided |
| Warning display | Out of self-leveling range Low battery |
| Dust and water protection | IP56 (IEC 60529:2001) |
| Operating temperature | -20~+50°C (-4 to +122°F) |
| Size | W192.5 x D167 x H189 mm (W7.6 x D6.6 x H7.5 in.) |
| Weight (w/batteries) | Approx. 2kg (4.4 Ib.) |
| Power supply | R14 (C) batteries x 4 |
| Continuous use | Approx. 60 hours (w/alkaline batteries, at 25°C (77°F)) |
| * Actual measuring range depends LR200 Specifications |
on local environmental conditions. |
| Detection sensitivity | £0.5mm (+£0.02 in.) or +2mm (+£0.08 in.) |
| Detection range | 50mm (2 in.) |
| DLCD display | 9 channels, located on both sides |
| LED | Orange, Green (center), Red |
| Buzzer | Loud/Normal/Off |
| Level vial | Built-in |
| Dust and water protection | IP66 (IEC 60529:2001) |
| Operating temperature | -20~+50°C (-4 to +122°F) |
| Size | W76 x D26 X H146 mm (3.0 x 1.0 x 5.8 in.) |
| Weight (w/batteries) | 190g (6.7 02.) |
| Power supply | R6 (AA) batteries x 2 |
| Continuous use | Approx. 100 hours |
| Automatic power cut-off | Approx. 30 minutes after operation |
