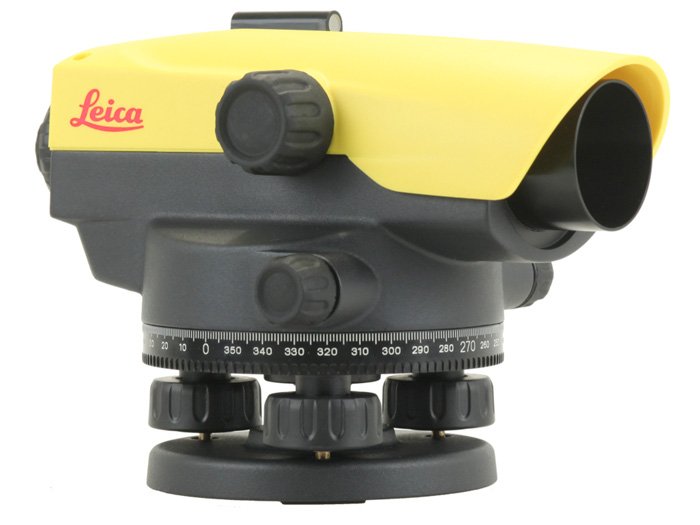

Leica NA 532

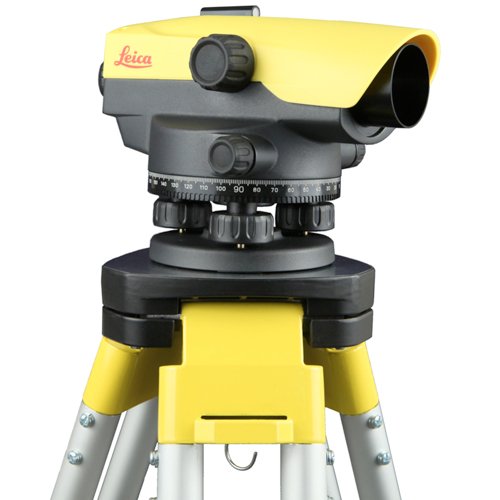

Leica NA 532 - Image 2

Leica NA 532

Leica NA 532

Professionals face many obstructions on site. Whatever the levelling challenge, Leica NA 532 level overcome. Rely on the known expertise of Leica Geosystems for the best quality and performance. On your terms, on your site, Leica Geosystems and the Leica NA500 Series are your trusted partners for accurate measurements every time.

Leica NA532 honoured with iF Design Award 2016

The newly-released Leica NA 532 level has received an iF Design Award 2016. The Leica NA532 level was entered in the product discipline for the industry/skilled trades category.

  • Leveling Accuracy ± 1.6mm (ISO17123-2 certified)
  • Telescope Magnification 32x
  • Minimum focus distance: < 1m
  • IP56 dust tight and water tight protection
  • Distinctive design and proven technology, inside and out
  • With a unique design, these levels produce the highest quality results at the best price value
  • The unique design of the Leica NA532 Automatic Level reflects the high quality of technology featured inside each level
  • These levels, while highly accurate, provide quick and easy measurements
  • Manufactured for the most rugged sites and the harshest conditions
Category:

Description

Key Features of Leica NA532 Auto Level

Unlike other economical automatic (optical) levels on the market, the unique design of the NA532 features proven technology and provides the highest quality results in its class while working in the most rugged of conditions.

UNIQUE DESIGN

  • Leica NA532 surveyors level is designed for professionals by experts. Built tougher than any construction site condition, the unique design of the NA 532 Series of automatic (optical) levels supports easy handling while ensuring the highest quality results.

ACCURATE

  • Whatever the levelling task, Leica NA500 Series levels measure with the highest precision. These automatic (optical) levels provide the highest precision while being ergonomic in their handling and are designed for the most rugged conditions.

FOCUSED

  • The target diopter makes it quick and easy to focus on the staff. By making this essential task as easy as possible, a level from the Leica NA 532 allows construction professionals to work as time efficiently as possible, saving time and money.

PROTECTED

  • The IP56 standard ensures the highest quality measurements even under the harhest conditions. With dust-tight and water-tight levels like the Leica NA500 Series feature, there is no need to worry about any adverse effect construction site conditions could have on your level – they won’t.



Technical Specification
Specifications of Leica NA 532 Automatic Level
Standard deviation for 1 km double levelling ±1.6mm (ISO 17123-2 certified)
Telescope
Telescope image Upright
Magnification 32x
Objective aperture 36mm
Shortest target distance from instr. axis < 1.0m
Field of view at 100 m < 2.1m
Multiplication factor 100
Additive constant 0
Compensator
Working range ± 15′
Setting accuracy (standard deviation) <0.5″
Sensitivity 8’/2 mm
Horizontal Circle
Graduation 360°
Graduation interval 1°
Weight (net) 1.5 kg
Operating temperature range –20° C to +50° C
Protection class IP56 dust tight and water tight protection
Leica NA532 Auto Level Art. No. 840386 Scope of delivery
  • Leica NA 532 Level
  • Carrying Case
  • Allen Key
  • Telescopic Aluminium Tripod
  • Levelling Staff
  • Manufacturer Certificate
  • User manual on CD
