Description

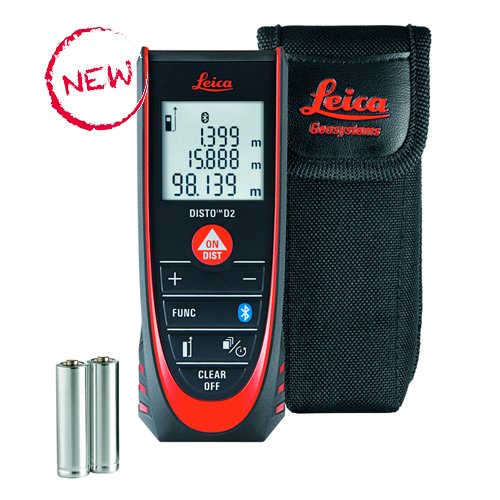

Key Features of Leica Disto D2 Laser Measurer
- Due to the latest measurement technology the Leica DISTO D2 achieves a range of 100 m. With Bluetooth® Smart the measurements can be transferred immediately to smartphones or tablets. Sensors in the flip-out end-piece enable the automatic detection of the end-piece position.
Measure precise and long distances in accordance with ISO 16331-1
- With the help of the innovative X-Range Power technology this small handheld laser distance meter device can measure long distances of up to 100m. In addition, this technology ensures optimum measuring performance, i.e. fast and reliable measurements.
Bluetooth® Smart – Error-free data transfer
- The latest DISTO™ sketch App is the ideal link between the new Leica DISTO D2 digital distance meter, a smartphone or tablet and new the Apple Watch. With this App you can prepare layouts and drawings, and dimension precisely. Also many 3rd party Apps are supported by the new Leica DISTO™ D2.
Versatile thanks to useful measuring functions
- Functions such as addition and subtraction, area and volume calculations make every measurement task child’s play. The instrument stores the last 10 measurement results.
Multi-functional end piece
- Whether you are taking measurements from corners, grooves or edges, with the multifunctional end piece you can always accurately position the Leica DISTO D2. The position of the end piece is automatically detected and taken into account. This prevents expensive measuring errors.
Versatile thanks to useful measuring functions
- Functions such as addition and subtraction, area and volume calculations make every measurement task child’s play. The instrument stores the last 10 measurement results.
Specifications of Leica Disto D2 Laser Distance Meter
| Minimum Measurement | 0.05m / 0.16ft |
| Maximum Measuring Range | 100m / 330ft |
| Measuring Accuracy | ±1.5mm (ISO 16331-1 certified) |
| Measuring Units | 0.1mm / 1/32in |
| Measuring Units | m, ft, in |
| X-Range Power Technology | Yes |
| Memory | 10 Points |
| Time delay release (Timer) | Yes |
| Display Illumination | Yes |
| Free software for Windows | Yes |
| Free App | iOS / Android |
| Data interface | Bluetooth® SMART |
| Measurements per set of batteries | up to 10,000 Measurements Reduced in Bluetooth® mode |
| Service life of battery | up to 20 hours Reduced in Bluetooth® mode |
| Multifunctional end-piece | Yes |
| Batteries | type AAA 2 × 1.5 V |
| Protection class | IP54 dust and splash water protected |
| Dimension | 116 x 44 x 26 mm |
| Weight with batteries | 100g |
| Laser Class | 2 |
| Warranty | Full Three-Year Replacement Warranty. |
| Country of Origin | Hungary |
Functions of Leica Disto D2 Laser Distance Meter
| Distance measuring | Yes |
| Min/Max measuring | Yes |
| Permanent measuring | Yes |
| Stake out | Yes |
| Addition/Subtraction | Yes |
| Area | Yes |
| Volume | Yes |
| Painter function (area with partial measurem.) | Yes |
| Pythagoras | Yes, 2-point, 3-point |
Frequently Asked Questions (FAQs) – All About Leica DISTO D2 Laser Measuring Tape
What happens if a number is visible on the display?
This is a message code. The numbers are displayed if a successful measurement could not be performed. The user can correct the measuring situation to achieve a measurement. Below you can find the spread sheet from the manual with the corrections:
| Error No. | Cause | Correction |
|---|---|---|
| 204 | Calculation error | Perform measurement again. |
| 240 | Data transfer error | Repeat procedure |
| 252 | Temperature too high | Let device cool down. |
| 253 | Temperature too low | Warm device up. |
| 254 | Battery voltage too low for measurements | Change batteries |
| 255 | Received signal too weak, measuring time too long | Change target surface (e.g. white paper). |
| 256 | Received signal too high | Change target surface (e.g. white paper). |
| 257 | Too much background light | Shadow target area. |
| 258 | Measurement outside of measuring range | Correct range. |
| 260 | Laser beam interrupted | Repeat measurement. |
